Introduction to Bitrix24 Chatbot Integration
Bitrix24 is a powerful platform offering CRM, collaboration, and communication tools, including chatbot support. Integrating a chatbot with Bitrix24 using webhooks can automate communication, provide quick responses, and enhance user experience.
Overview of the Bot Workflow
The workflow detailed here demonstrates how to create a chatbot application that interacts with Bitrix24 using webhook events, processes different types of events, and sends appropriate responses.

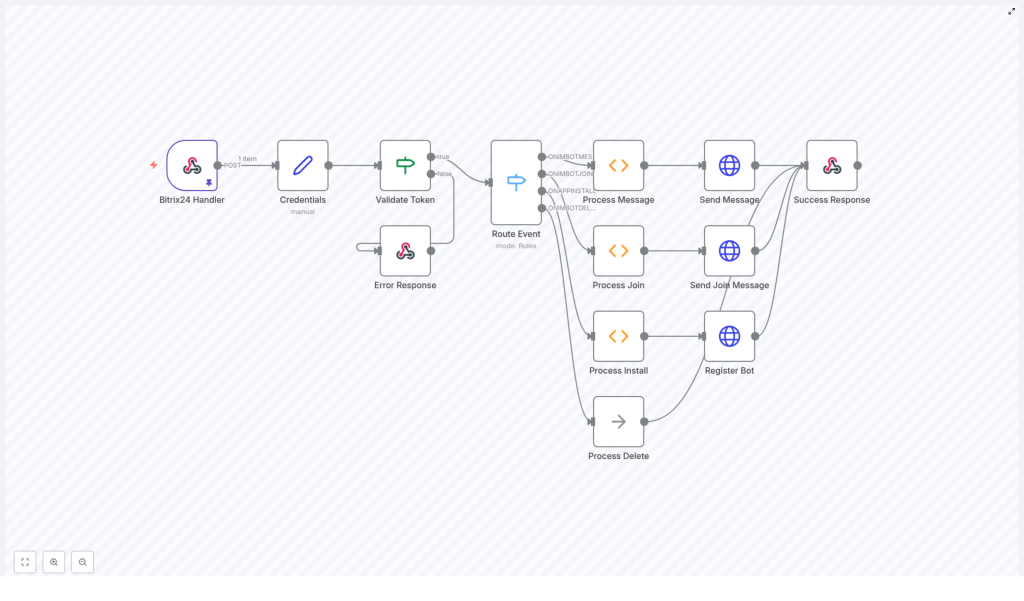

Key Components in the Workflow
- Bitrix24 Handler: Receives POST webhook calls from Bitrix24.
- Credentials Node: Extracts and assigns necessary tokens and domain information from incoming data.
- Validate Token Node: Checks the validity of the application token to ensure secure communication.
- Route Event Node: Determines the type of incoming event and routes it accordingly.
- Process Message: Handles new bot messages received.
- Process Join: Handles bot join chat events.
- Process Install: Manages bot installation events.
- Process Delete: Handles bot deletion events.
- HTTP Request Nodes: Used to send messages back to Bitrix24 or register the bot via API calls.
- Respond to Webhook Nodes: Deliver success or error responses back to Bitrix24.
How the Workflow Operates
1. Bitrix24 sends a webhook POST request to the Bitrix24 Handler node.
2. Credentials node parses the request payload, extracting authentication tokens, client ID, and domain.
3. Validate Token node verifies the application token. If invalid, it triggers an Error Response node returning a 401 error.
4. Upon successful validation, the Route Event node checks which type of event it is (e.g., a message add, bot join, installation, or deletion).
5. Depending on the event type, it forwards the event to corresponding processing nodes:
- Process Message: Extracts the chat dialog ID and message text, then optionally customizes a response. For instance, replying with “Hi! I am an example-bot. I repeat what you say” or echoing back the user’s message.
- Process Join: Sends a greeting message when the bot joins a chat.
- Process Install: Registers the bot with Bitrix24 using an API call, setting properties like name, last name, color, email, and more.
- Process Delete: Currently a no-operation node but can be extended for cleanup.
6. The processed message or join response is sent using HTTP Request nodes to the Bitrix24 REST API, providing real-time responses in the chat.
7. Finally, a Success Response node sends a JSON response confirming successful processing back to Bitrix24.
Enhancing Your Bot
This workflow can be enhanced by adding more intelligent processing, like AI-powered responses, message context awareness, or integration with other systems.
